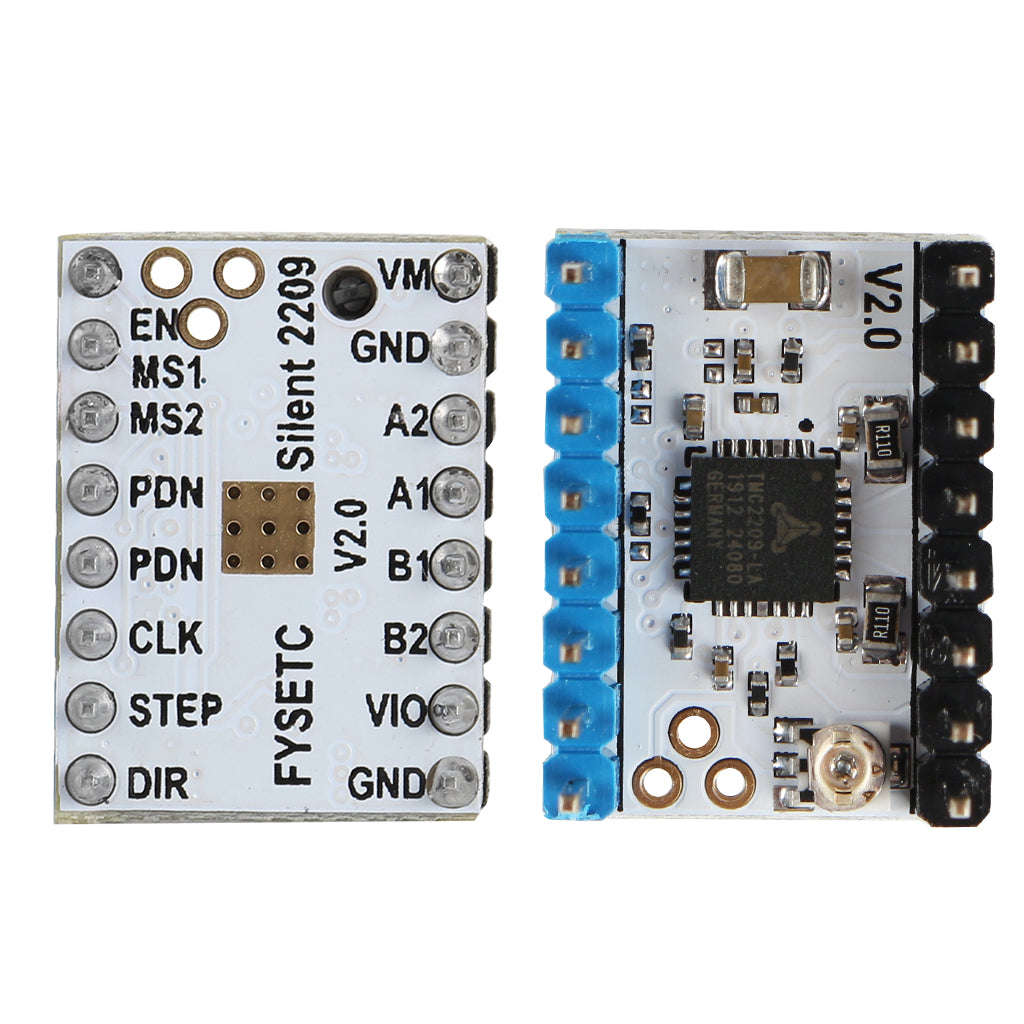

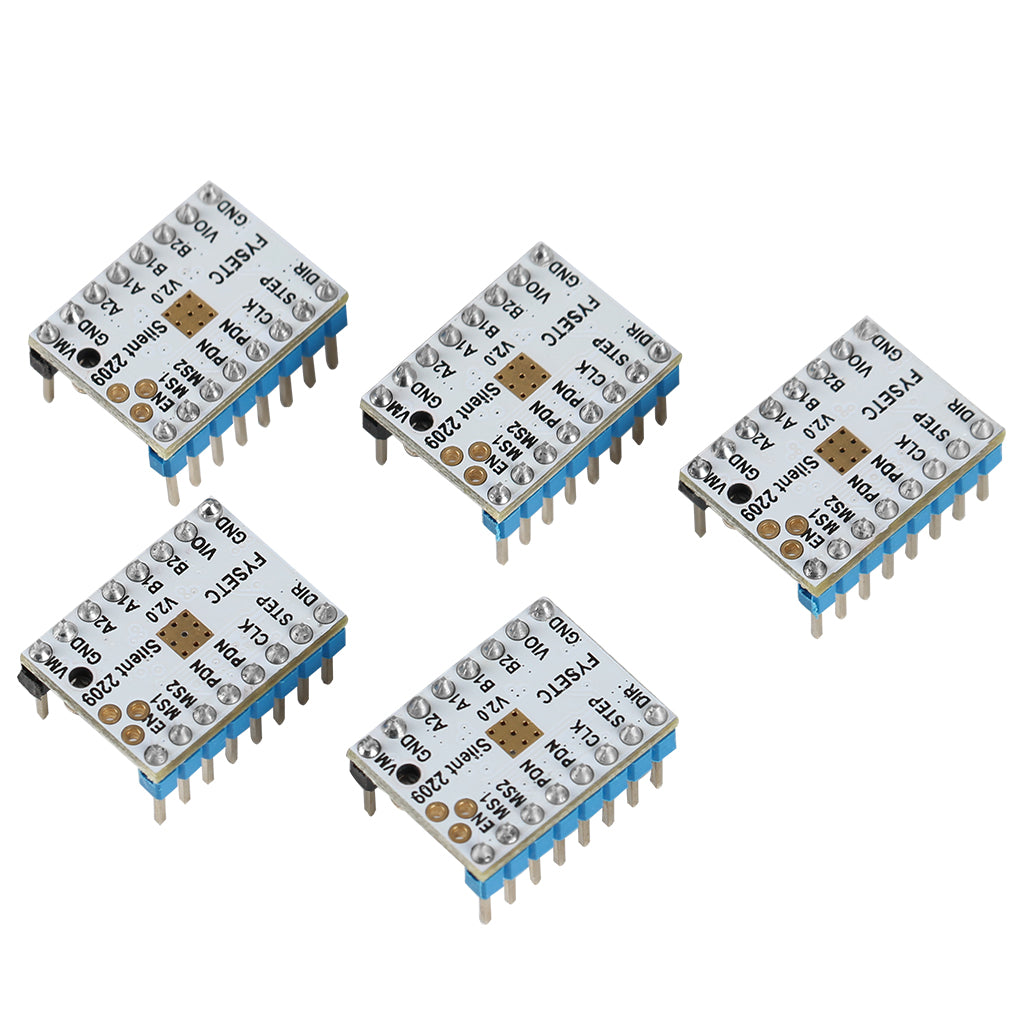

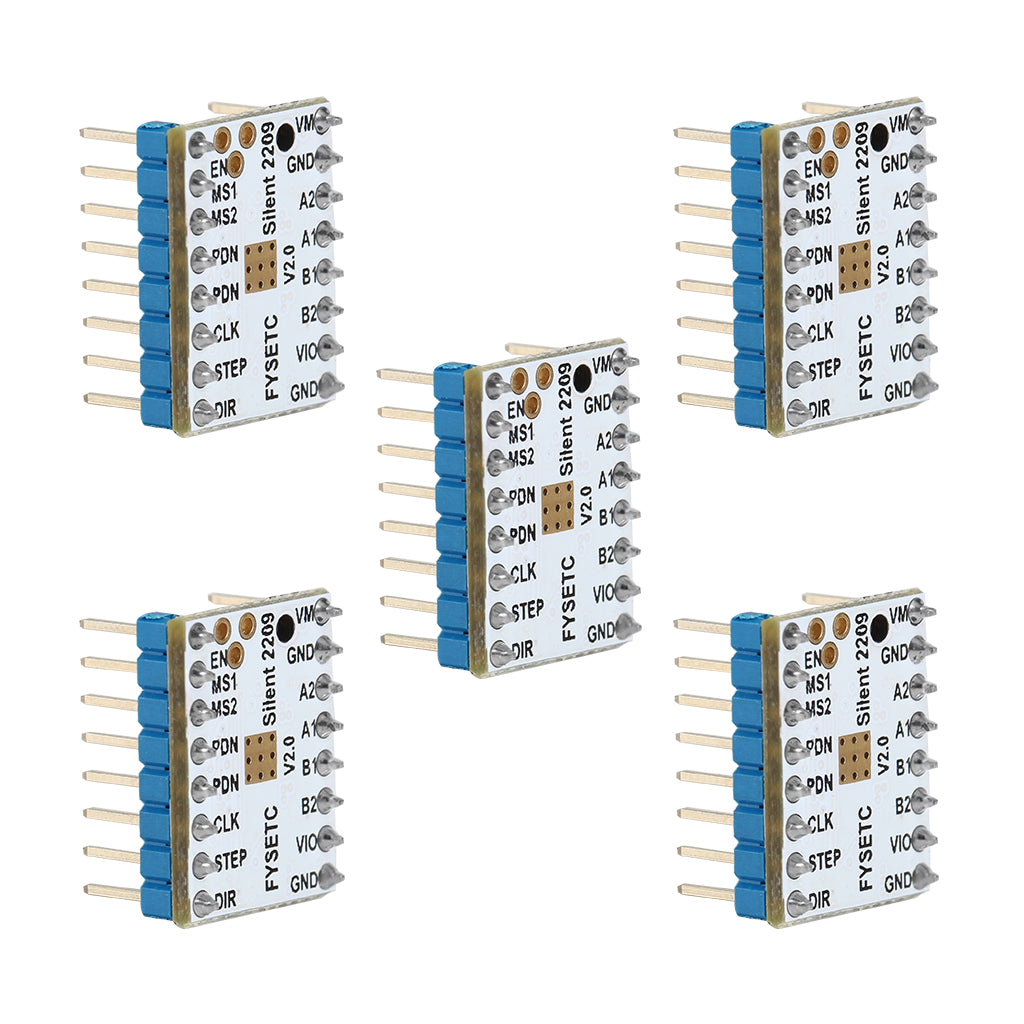

20pcs TMC2209 V2.0 Stepper Motor Driver Super Silent Stepsticks Mute Driver Board 256 Microsteps For Sidewinder 3D Printer

20pcs TMC2209 V2.0 Stepper Motor Driver Super Silent Stepsticks Mute Driver Board 256 Microsteps For Sidewinder 3D Printer

The tmc2209 stepper motor driver v2.0 version and v3.0 version will send randomly, and the two versions are universal. The pin header of v3.0 can be cut off if you don't need it.

Features:

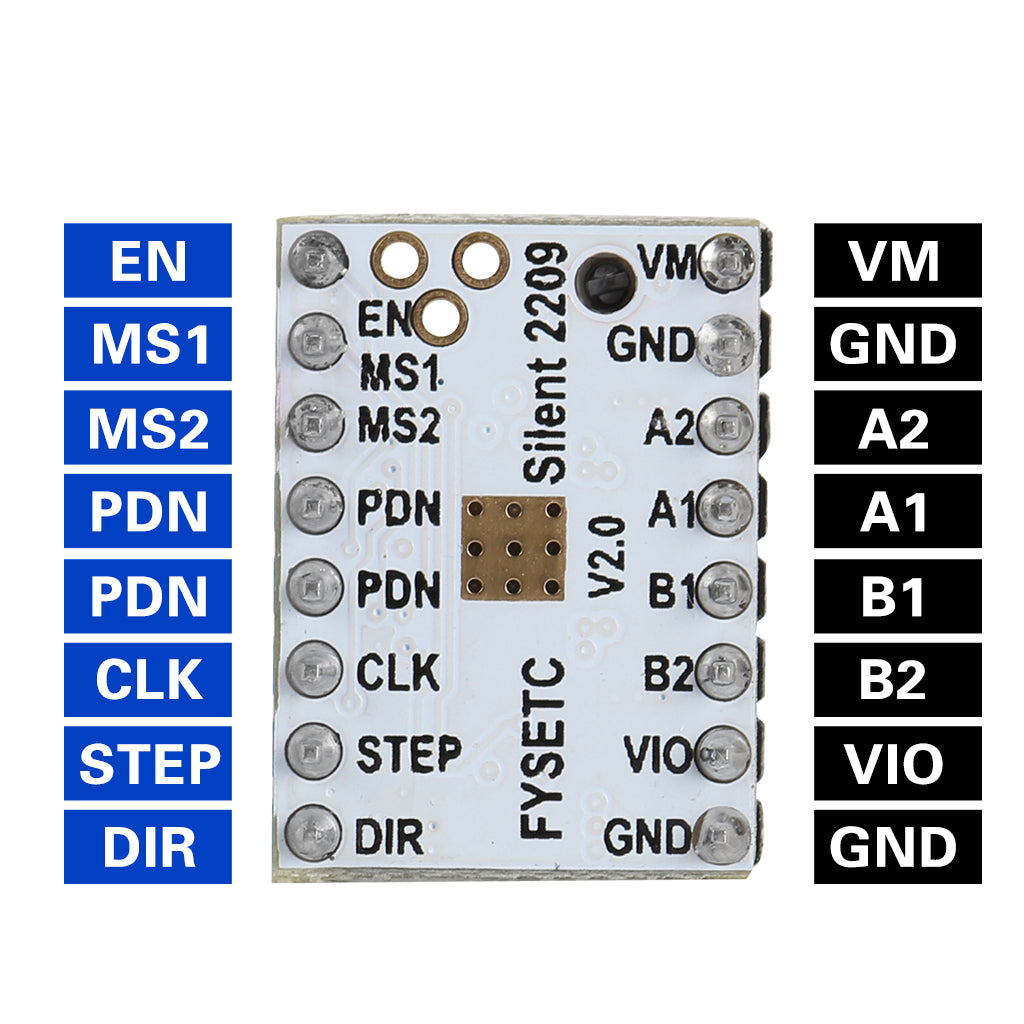

• Hardware compatible with StepStick and Pololu A4988.
• Drive capability up to 1.7A (RMS) continuous coil current - 2.8A Peak.
• Step/Dir interface with microstep interpolation (up to 256 microsteps).
• Configuration via CFG pins or UART interface.
• Motor voltage: 5.5~28V

• Logic voltage: 3.3~5V

• RSense: 0.11 Ohm

• StealthChop2 - for quiet operation and smooth motion

• SpreadCycle - highly dynamic motor control chopper (enableable via UART, OTP, CFG Pin)

• CoolStep - current control for energy savings

• StallGuard4 - sensorless motor load detection

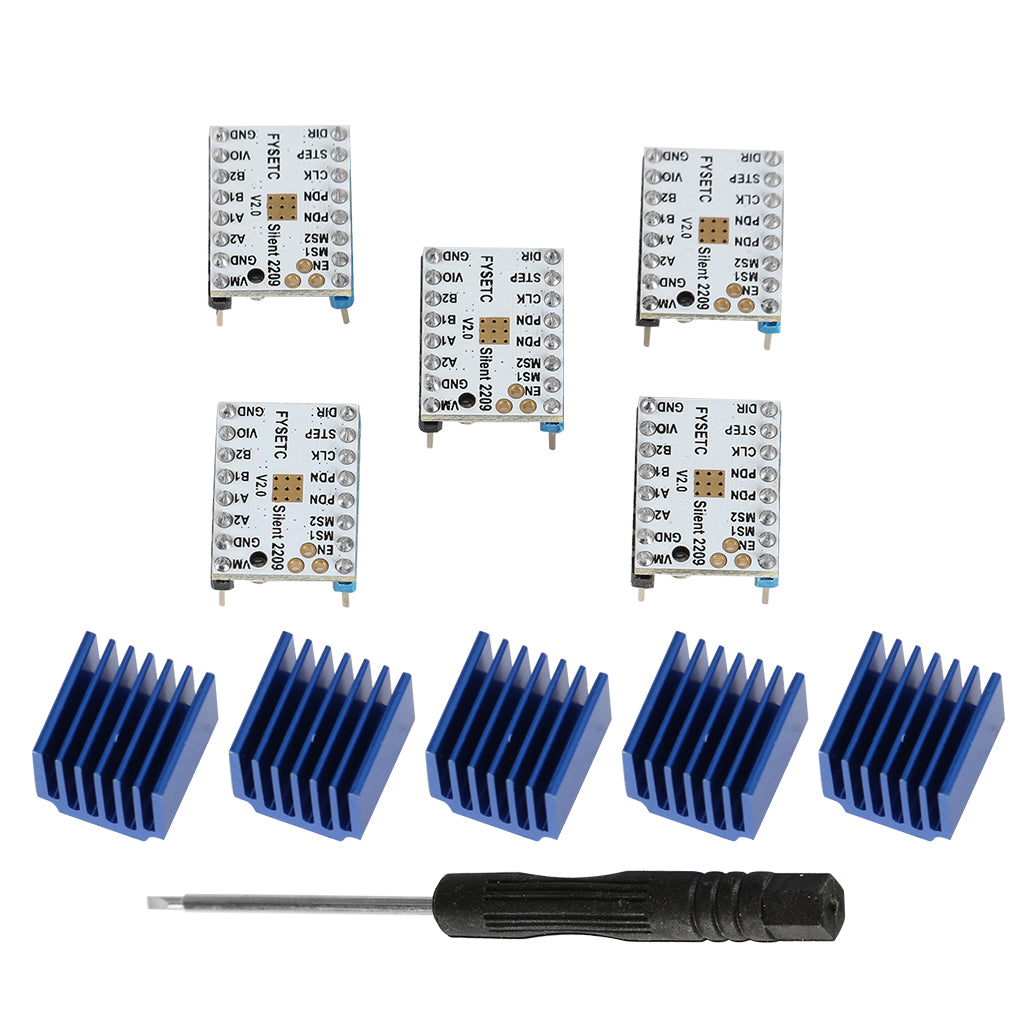

Package Includes:

• 20 x TMC2209 Driver
• 20 x Heatsink
• 20 x Screwdriver
